ASSEMBLY INSTRUCTIONS
READ & SAVE
554CHB
INSTALLATION & OPERATION INSTRUCTIONS
TOOLS & MATERIALS REQUIRED
·
Screwdriver
·
Wire
Cutters
·
Adjustable
Wrench
·
Wiring
CAUTION
Prior to assembly,refer to
ELECTRICAL CONNECTIONS
section.If you do not
have electrical wiring experience,refer to a do-it-yourself wiring handbook or have
your fixture installed by a qualified licensed electrician.
GENERAL

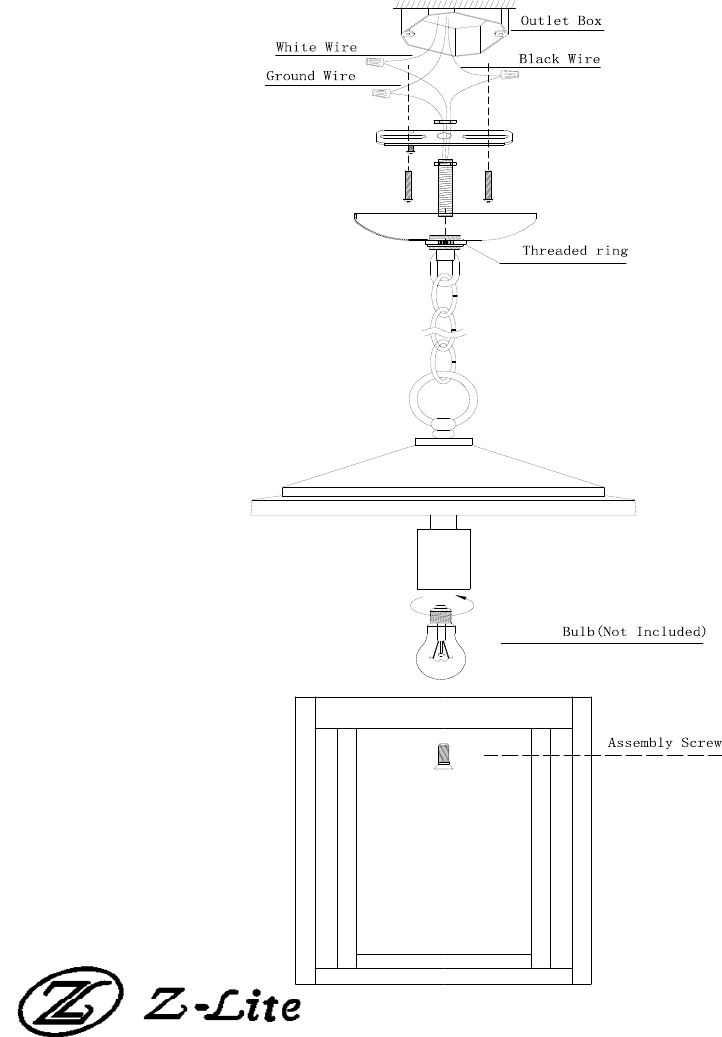

1. Be sure to read these instructions and review the diagrams thoroughly before
beginning.
2. Electrical connections must be in accordance with local codes,ordinances,or
the National Electric Code.If you are unfamiliar with methods of installing
electrical wiring,secure the services of a qualified licensed electrician.
3. Before starting the installation,disconnect the power by turning off the circuit
breaker or by removing appropriate fuse at fuse box.Turning the power off at
the light switch is not sufficient to prevent electrical shock.
PREPARE THE FIXTURE
NOTE:First turn off electricity
1. If replacing an existing fixture,disconnect and remove old fixture.Expose the
supply wiring from outer fixture.
2. If your fixture is supplied with three machine screws,thread the long machine
screws into the opposite side of outer fixture.While supporting the fixture,make
electrical connections.
ELECTRICAL CONNECTIONS 120V～, 60Hz
Connect white wire(s) from fixture to white neutral wire from supply circuit.
Connect black wire(s) to black hot wire from supply circuit.Connect green wire to
green or bare wire or grounding screw on mounting bracket.In all cases grounding
conductor to earth must be used.Use UL/CSA Listed wire connects suitalbe for the
size,type,and number of conductors.No loose strands or loose wires should be
present.Secure wire connectors with UL/CSA Listed electrical tape.
FINAL ASSEMBLY
1. Spread electrical splices so black wires are on one side of outlet box and white
wires
on
the
other.
2. Attach assembled unit to outer fixture by using two screws and brass nuts,or
the
threaded
stem
with
nut
provided.
3. Install light bulbs(not provided) and cover assembly.Some models employ a
twist
off
top
cap
to
allow
access
to
bulbs.
4.
CAUTION
: Refer to the relamping label located near lampholder for
recommended
maximum
wattage.Do
not
exceed
recommended
wattage.
5. Use weather resistant caulk to seal around top and side perimeter of fixture back
plate.Leave
bottom
uncaused
to
allow
for
condensation
evaporation.
6. Restore electrical power.
