User manual

STAIRCASE TIME DELAY SWITCH ASH-01/U
INSTRUCTION
MANUAL
Zakład Mechaniki i Elektroniki
ZAMEL sp.j.
J.W. Dzida, K. Łodzińska
ul. Zielona 27, 43-200 Pszczyna, Poland
Tel. [phone], Fax [phone]
www.zamelcet.com, e-mail: [e-mail]
VER. 002_06.04.2010
FEATURES
DESCRIPTION

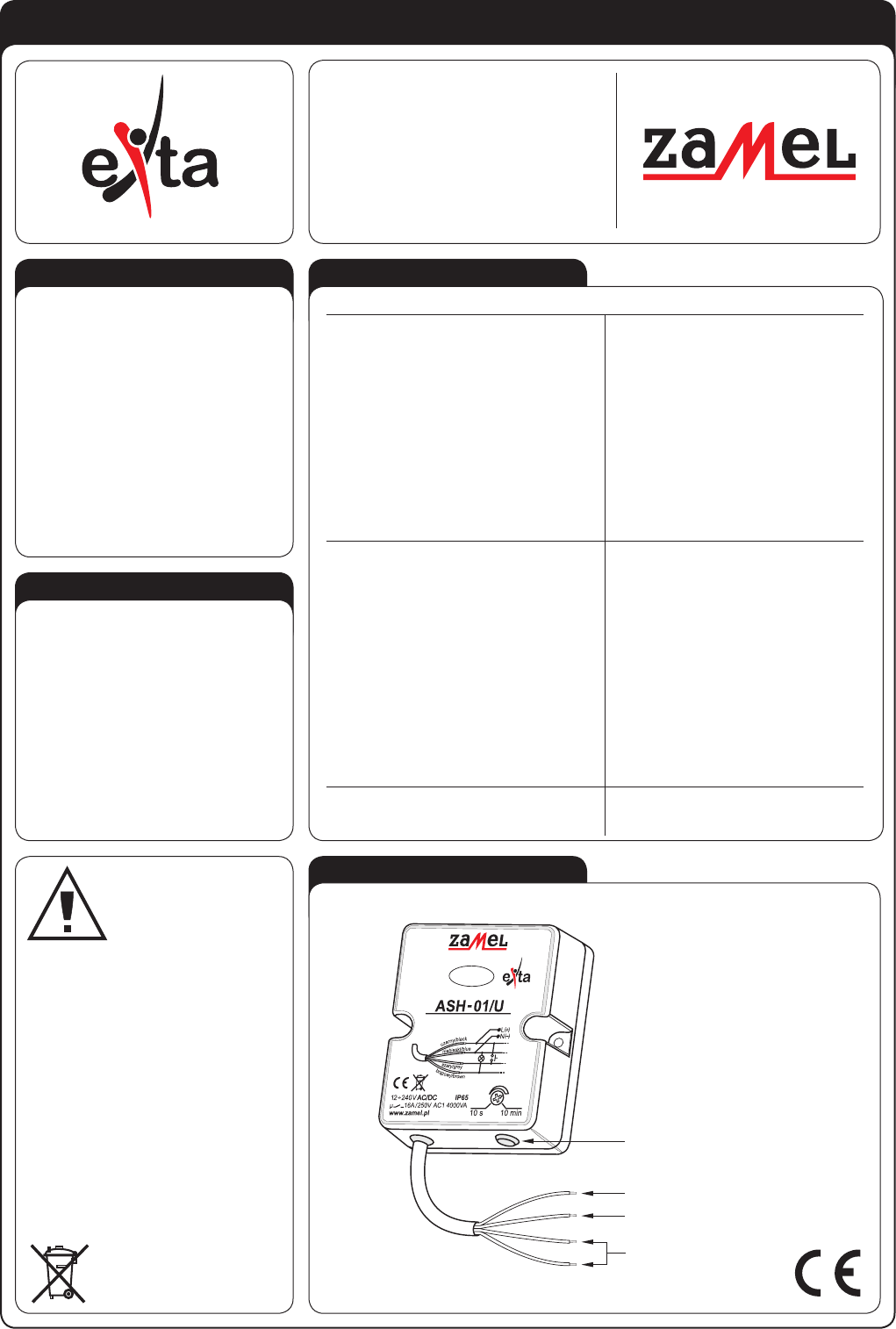

APPEARANCE
● Operating time adjustment from 10 se-
conds to 10 minutes
● universal supply voltage 12÷240 V
AC/DC
● cooperation with 3- or 4-wires installa-
tion
● cable connection 0,5m length
● relay output - 1 voltage contact contact
max 16 A capacity,
● hermetic casing (IP65).
The staircase lighting time delay
switch ASH-01/U is used to control ligh-
ting devices on staircases and corridors.
After releasing the system it switches
on the lighting for the preset time by the
user. After that it switches off automati-
cally. The operating time can be adjusted
from 10 sec to 10 min by means of a po-
tentiometer. The staircase lighting time
delay switch ASH-01/U can be used as
standard time delay relay. The hermetic
casing (IP65) secures the device functio-
ning in unfavorable weather conditions.
The device is designed for
one-phase installation and
must be installed in accor-
dance with standards valid
in a particular country. The
device should be connec-
ted according to the deta-
ils included in this operating manual. In-
stallation, connection and control should
be carried out by a qualied electrician
staff, who act in accordance with the se-
rvice manual and the device functions. Di-
sassembling of the device is equal with a
loss of guarantee and can cause electric
shock. Before installation make sure the
connection cables are not under voltage.
The cruciform head screwdriver 3,5 mm
should be used to instal the device. Im-
proper transport, storage, and use of the
device inuence its wrong functioning. It
is not advisable to instal the device in the
following cases: if any device part is mis-
sing or the device is damaged or defor-
med. In case of improper functioning of
the device contact the producer.
CAUTION
TECHNICAL PARAME-
TERS
ASH-01/U
Power supply cables: A1 (black), A2 (blue)
Input rated voltage: 12 ÷ 240 V AC/DC
Input voltage tolerance: from-5 to +10%
Nominal frequency: 50 / 60 Hz
Rated power consumption: 0,9 VA
Znamionowy pobór prądu: 8 mA
Release / output (load) cables:
grey / brown (connected inside)
Time adjustment range: from 10 sec to 10 min
Time accuracy adjustment: ±10 %
Time repeatability adjustment: ±5 %
Time adjustment: smooth (rotary potentiometer)
Output relay parameters: 16 A / 250 V AC1 4000 VA
Number of switch cables: 4
Section of connecting cables: 4x 0,75 mm
2
Connecting cable length: 0,5 m
Ambient temperature range: from -20 to +45
o
C
Operating position: vertical, pointed down
Mounting: 2x stretcher 5x(3x30)
Protection degree: IP65 (EN 60529)
Protective class: II
Overvoltage category: II
Pollution degree: 2
Rated impulse withstand voltage: 1 kV (EN 61000-4-5)
Dimensions: 69 x 56 x 27 mm
Weight: 0,101 kg
Reference standards: EN 60669-1
EN 60669-2-1
EN 61000-4-2,3,4,5,6,11
The symbol stands for selective
collection of electrical and
electronic devices. Placing used
devices with other waste is not
allowed
b
l
a
c
k
b
r
o
w
n
g
r
e
y
b
l
u
e
Power supply cable (A2)
Power supply cable (A1)
Time adjustment
Release / output (load)
cables
