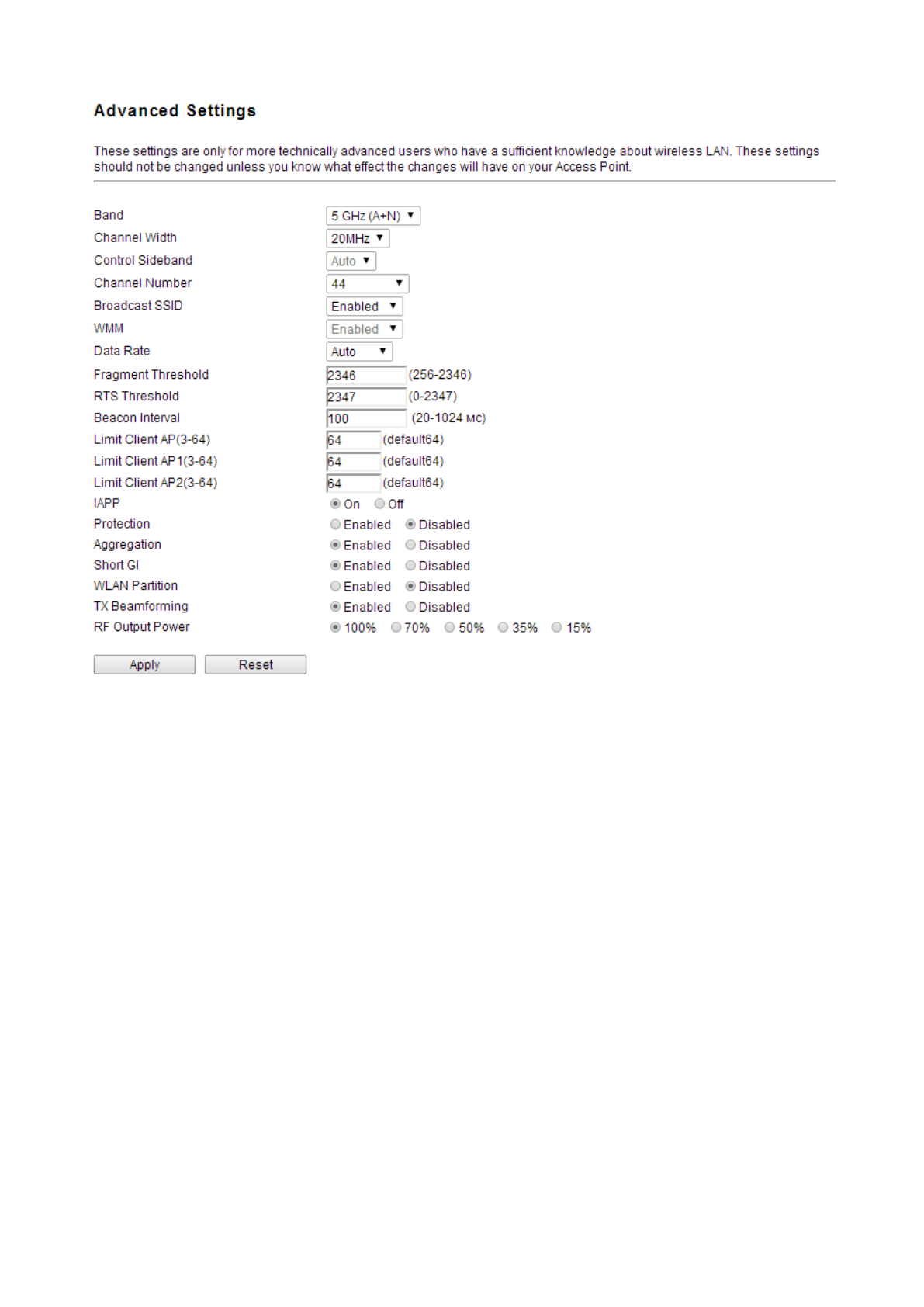

Band: This option allows you to choose the radio standard for operation of your Router.
802.11b and 802.11g are old 2.4GHz mode, while 802.11n is the latest standard based on
faster Orthogonal Frequency Division Multiplexing (OFDM) modulation.
Channel Width: This is the spectral width of the radio channel. Supported wireless channel
spectrum widths:
20MHz is the standard channel spectrum width.
40MHz is the channel spectrum with the width of 40MHz.
Channel Number: This option provides selectable channel numbers.
Broadcast SSID: you can choose to enable or disable to broadcast your SSID.
WMM: it maintains the priority of audio, video and voice.
Fragment Threshold: specifies the maximum size for a packet before data is fragmented
into multiple packets. The range is 256-2346 bytes. Setting the Fragment Threshold too low
may result in poor network performance. The use of fragment can increase the reliability of
frame transmissions. Because of sending smaller frames, collisions are much less likely to
occur. However, lower values of the Fragment Threshold will result in lower throughput as
well. Minor or no modifications of the Fragmentation Threshold value is recommended
while default setting of 2346 is optimum in most of the wireless network use cases.
RTS Threshold: determines the packet size of a transmission and, through the use of an
access point, helps control traffic flow. The range is 0-2347bytes. The default value is 2347,
