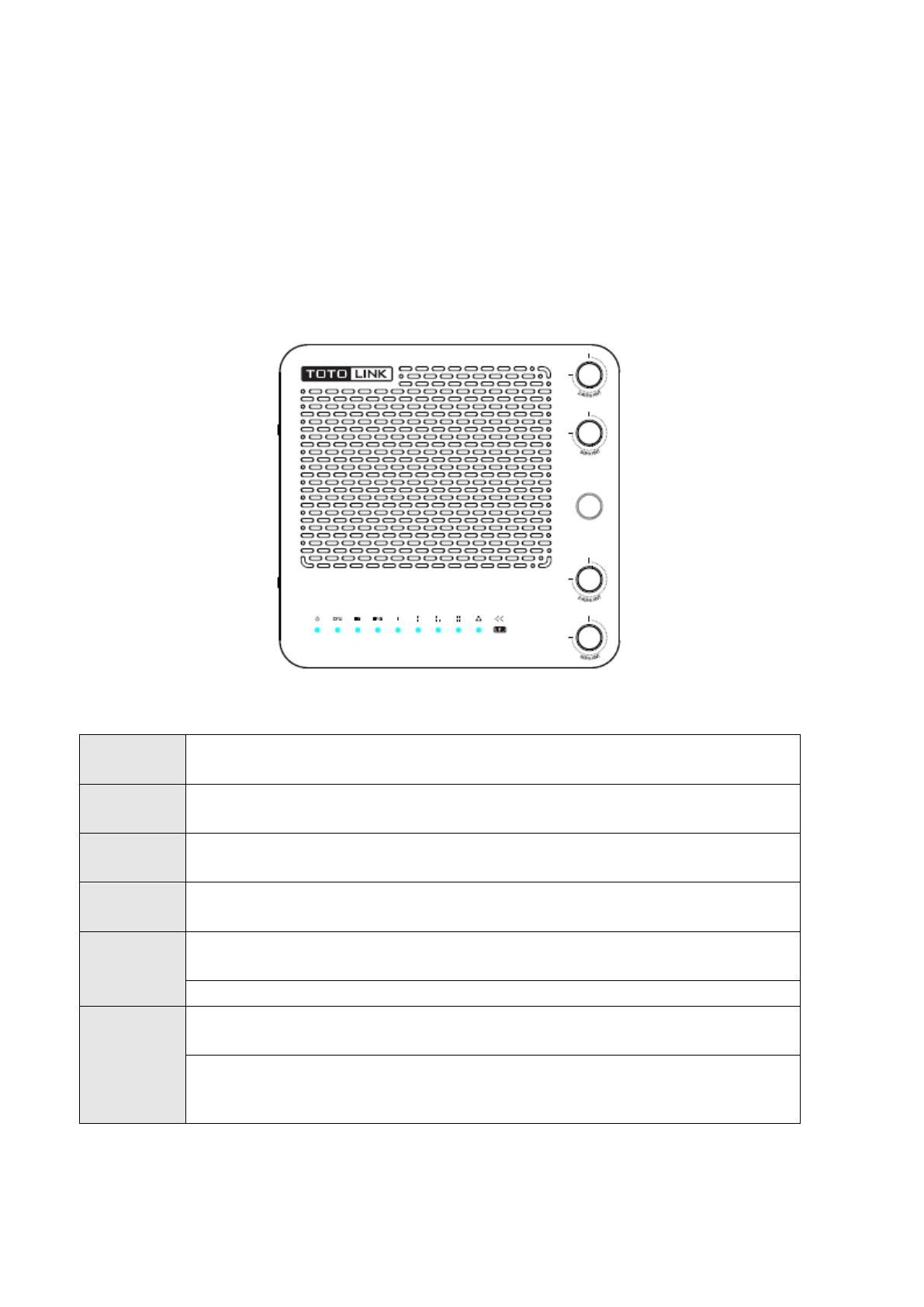

The front panel of this router consists of 10 LEDs, which is designed to indicate connection
status.
POWER
This indicator lights blue when the router powered on, otherwise it is off.
CPU
When the router powered on, this indicator keeps lighting blue.
2.4G
This indicator lights blue when the 2.4G wireless connection enabled.
5G
This indicator lights blue when the 5G wireless connection enabled.
WAN
When the WAN port is connected successfully the indicator lights blue.
While transmitting or receiving data through the WAN port the indicator blinks blue.
1/2/3/4 LAN
When the LAN port has a successful connection, the indicator lights blue.
While transmitting or receiving data through the LAN port the indicator blinks blue.
The figure below shows the rear panel of this router.
