Dimension GS-3012 Gigabit Ethernet Switch
Access Control 17-9

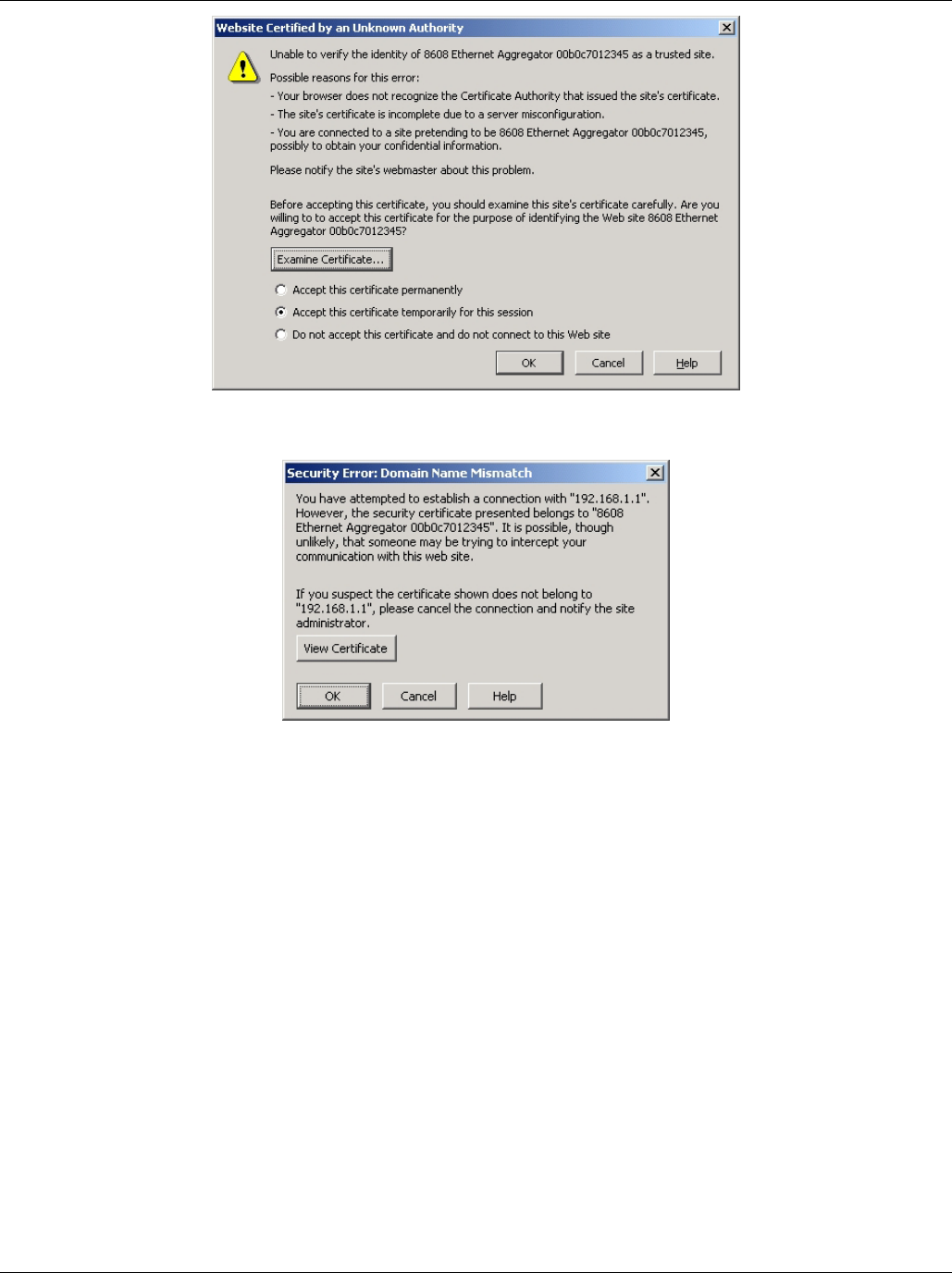

Figure 17-10 Security Certificate 1 (Netscape)
Figure 17-11 Security Certificate 2 (Netscape)
17.7.4 Login Screen
After you accept the certificate and login in, the switch main screen appears. The lock displayed in the bottom right
of the browser status bar denotes a secure connection.
