Dimension GS-3012 Gigabit Ethernet Switch
17-10 Access Control

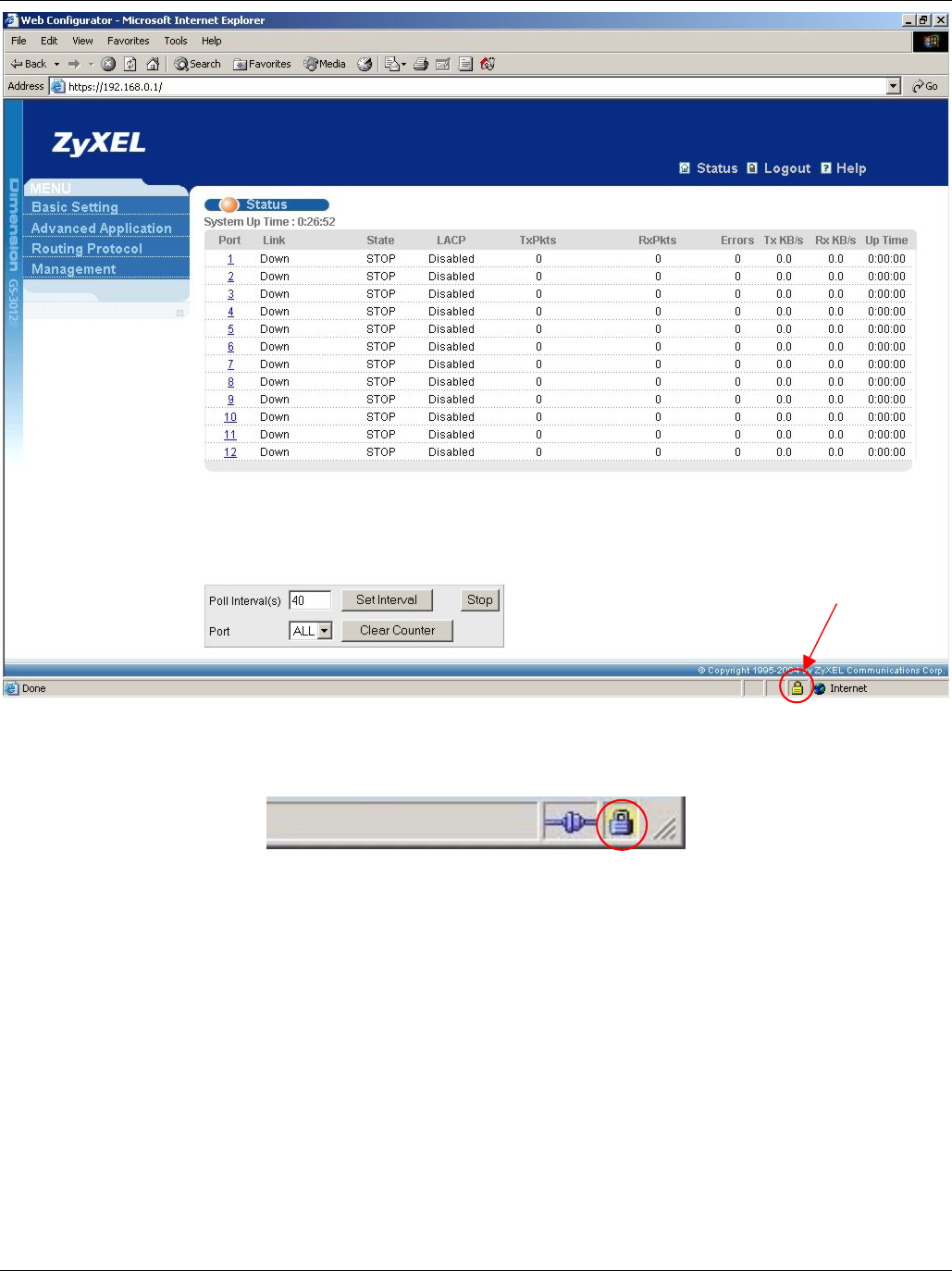

Figure 17-12 Main Screen (Internet Explorer)
Figure 17-13 Main Screen (Netscape)
17.8 Service Access Control
Service Access Control allows you to decide what services you may use to access the GS-3012. You may also
change the default service port and configure “trusted computer(s)” for each service in the Remote Management
screen (discussed later). Click Access Control to go back to the Access Control screen.
